We will write code to control the Raven Surgical Robot with hand gestures. We will do this by integrating the 3Gear System, CISST libraries, ROS, and the Raven itself.

• Students: Kristine Sarnlertsophon, Alan Chancellor
• Mentor(s): Kelleher Guerin, Anton Deguet

The Raven Robot is a surgical robot with open-source software, created by the University of Washington in Seattle. It has been sent to research labs across the country as a platform for researchers to experiment with surgical robots. We aim to increase its usability by integrating the CISST libraries and a gesture control input; in doing so, we will create interfaces for:

• 3Gear to CISST communication,
• CISST library to ROS, and
• ROS to the Raven robot (or Raven simulator).

We are using the Raven Robot as a vehicle to integrate these software libraries, and the goal of our project is to demonstrate this integration by controlling the Raven Robot using hand gestures. The integration of these systems will be of use to researchers working with surgical robots, even if they don't use the Raven robot. By enabling the 3Gear device to communicate using the CISST library, we open the doors for this more natural form of input to be used in other surgical robot systems. In linking the CISST library to ROS, we allow the users of ROS (there are many) access to a well-developed library specifically for the development of computer assisted intervention systems. Finally, we are refining the Raven Robot’s software to better integrate with ROS so that other researchers may further develop using the Raven.

The 3Gear system is a commercial product, currently in beta, which utilizes two Kinects (for their 3D cameras) to track a user’s hand gestures, accurate to millimeters. 3Gear provides Java and C++ libraries which allow us to write our own hand-tracking applications. Their software passes messages about the position and orientation of each hand, which we can use to control the hands on the Raven. 3Gear’s own software relies on user-calibrated poses to track the hands; since they have not developed tracking for poses outside of their database, we may need to see what effect this limitation has on our own system.

The CISST package is an open-source collection of libraries designed to be used in computer assisted intervention systems. We will be extensively using the CISST Multitask library, which provides the component-based framework for the CISST package. Objects in the CISST Multitask framework include “provided interfaces” and “required interfaces,” which allow for communication between different components in a client-server manner. This allows for our code to be far more reusable; ideally, the CISST libraries we write will be able to plug in to any input device with an appropriate SAW/CISST Multitask wrapper (such as the one we are writing for the 3Gear) and transmit the appropriate data to ROS.

The Robot Operating System is an open-source operating system for robots. It provides hardware abstraction, low-level device control, implementation of commonly-used functionality, message-passing between processes, and package management. ROS is a distributed framework of modular “nodes,” which can be put together to form an entire system. As such, ROS code is extremely reusable; we aim to take advantage of the nature of ROS and CISST Multitask to make the software we write for the 3Gear to Raven system generalizable for many inputs and robots.

The Raven is a robotic surgery research system that uses open-source software based on ROS. It was developed by the BioRobotics Laboratory in the University of Washington in Seattle, and it has been sent to multiple research laboratories to enable further research in tele-operative and minimally invasive surgery. Although it has not yet been approved by the FDA, research laboratories have ambitious plans for the Raven, including operating on a beating heart (moving in sync with the heartbeats) and having the robot perform autonomously by imitating surgeons.

• Minimum: COMPLETE
  1. SAW Wrapper for 3Gear + documentation
  2. CISST to ROS interface + documentation
  3. Simple frames moving in rviz(demonstration)

• Expected: (Expected by May 9)
  1. 3Gear to CISST interface + documentation
  2. CISST to ROS interface + documentation
  3. ROS to Raven Simulator interface + documentation
  4. Show control of Raven Simulator using gestures (demonstration)

• Maximum: (No longer expected)
  1. ROS to Raven robot interface (all libraries + documentation)
  2. Show control of Raven Robot using gestures (demonstration)

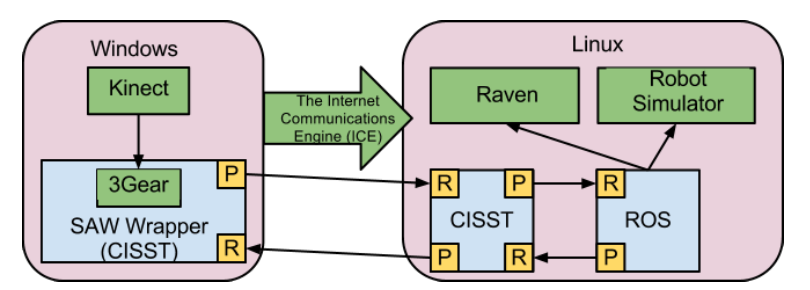

The components will be made to interface with each other via a component-based approach. This means writing a SAW (Surgical Assist Workstation; CISST package) wrapper for 3Gear, and writing the required and provided interfaces between CISST and ROS. It will also be necessary to make CISST communicate between an iteration running on a Microsoft Windows machine, which runs the 3Gear input system, and an Ubuntu machine, which runs the ROS and the Raven or robot simulator; communication between the two computers will be achieved using ICE, the Internet Communications Engine from ZeroC.

Access to 3Gear Computer
Resolution Plan: Get J-Card access, ask Kell for access
Resolve by: February 15
Resolved: YES
Fallback plan: N/A

Learn to build CISST
Resolution Plan: Meet with Anton to help us
Resolve by: February 22
Resolved: YES
Fallback plan: Find another helpful person to teach us CMake (or learn it through documentation)

Access to Linux Machine for ROS and Raven Simulator
Resolution Plan: Kell finds us a Linux machine to work with
Resolve by: February 22
Resolved: YES, working on virtual machine for now.
Fallback plan: Work on a virtual machine or on our laptops

Software Design Approval from Mentors
Resolution Plan: Meet with Kell and Anton to review and approve software plan
Resolve by: March 6
Resolved: YES
Fallback plan: Meet with Prof. Taylor to review software (will likely cause delay)

Networking between 3Gear (Windows) machine and ROS/Raven (Linux) Machine
Resolution Plan: Ask mentors for help
Resolve by: March 25 April 10
Resolved: YES
Fallback plan: Learn to network computers?

CAD models and/or actual Raven Simulator
Resolution Plan: These should be available through the Raven community
Resolve by: March 15
Resolved: YES
Fallback plan: Contact other research groups/universities for access to their Raven Simulator, or use the Gazebo simulator

Access to Raven Robot + Control Computer
Resolution Plan: Ask Kell for access
Resolve by: April 15
Resolved: YES
Fallback plan: Maximum Deliverable is not achieved.

Build cisstRos
Resolution Plan: Ask mentors for help
Resolve by: April 3
Resolved: YES
Fallback plan: None, critical.

Install ICE on computers to be used
Resolution Plan: Ask Kel (who has admin access to the computer
Resolve by: April 10
Resolved: YES
Fallback plan: None, critical

Learn how the Raven is controlled
Resolution Plan: Ask Kel to assist
Resolve by: April 3
Resolved: NO
Fallback plan: None, affects maximum and expected deliverables.

1. Milestone name: Design Specifications
   • Planned Date: March 11
   • Expected Date: March 11
   • Status: Complete
2. Milestone name: 3Gear to CISST code + documentation
   • Planned Date: April 15
   • Expected Date: April 26
   • Status: Complete
3. Milestone name: CISST to ROS code + documentation
   • Planned Date: April 1
   • Expected Date: May 3
   • Status: In Progress
4. Milestone name: ROS to Raven Simulator code + documentation
   • Planned Date: April 19
   • Expected Date: April 26
   • Status: In Progress
5. Milestone name: 3Gear to Raven Simulator Demonstration
   • Planned Date: April 26
   • Expected Date: May 6
   • Status: Planned
6. Milestone name: ROS to Raven Robot code + documentation
   • Planned Date: April 29
   • Expected Date: No longer expected
   • Status: N/A
7. Milestone name: 3Gear to Raven Simulator Demonstration
   • Planned Date: May 3
   • Expected Date: May 6
   • Status: Planned

• Project Plan
  • Project plan presentation PDF (updated Feb 19)
  • Project plan proposal PDF(updated Feb 26)
• Project Background Reading
  • See Seminar Papers and Project bibliography
• Project Checkpoint
  • Project checkpoint presentation
  • Checkpoint II
• Paper Seminar Presentations
  • Alan's Seminar Report
  • Gesture-Based Input Method (Original Paper) presented by Kristine Sarnlertsophon March 12
  • Seminar Paper for Gesture-Based Input Method
  • Seminar Presentation for Gesture-Based Input Method
• Project Final Presentation
  • PDF of Poster
• Project Final Report
  • Final Report
  • User's Manual and Installation Guide

• M.J.H. Lum, J. Rosen, T.S. Lendvay, M.N. Sinanan, B. Hannaford, 'Effect of Time Delay on TeleSurgical Performance,' IEEE International Conference on Robotics and Automation (ICRA), 2009.
• M.J.H Lum, J. Rosen, H. King, D.C.W. Friedman, G. Donlin, G. Sankaranarayanan, B. Harnett, L. Huffnam, C. Doarn, T. Broderick, B. Hannaford,'Telesurgery Via Unmanned Aerial Vehicle (UAV) with a Field Deployable Surgical Robot,' Proceedings, Medicine Meets Virtual Reality (MMVR), Long Beach, CA, 2007.
• https://trac.lcsr.jhu.edu/cisst - description and documentation of CISST code
• Quigley, Morgan, et al. “ROS: an open-source Robot Operating System.” ICRA workshop on open source software. Vol. 3. No. 3.2. 2009.
• http://www.threegear.com/technology.html
• http://www.ros.org/wiki/

Source code is available under the Robotorium's SVN: https://svn.lcsr.jhu.edu/robotorium/trunk/apps/3gear/ A video demo of our system at work: https://www.dropbox.com/s/1i7au9m3ti63fjh/20130513_132053.mp4
