Note: This project was changed in mid-semester, in response to the COVID-19 outbreak. The new project is “A County-level Dataset for Informing the United States' Response to COVID-19”, and its web page can be found here.
Develop a method that improves pelvis landmark detection for intraoperative 2D to 3D registration on real, scarce X-rays that takes advantage of simulated, readily available X-rays.
Minimally invasive hip surgery is a desirable method for many patients. Although its benefits remain controversial with regard to pain management and recovery time, many patients strongly prefer a smaller incision to more traditional hip surgery. Unfortunately, these cosmetic advantages translate to additional complexity for the surgeon. Minimally invasive hip surgery requires navigation in and manipulation of anatomical structures which are underneath unbroken skin and thus not reliably visible to the surgeon. At the same time, correctly aligning the cup and stem is crucial to the operation's success. In the past, this has been achieved by using the minimal incision as a “mobile window” for identifying anatomical landmarks, but this can result in unreliable outcomes.
Alternatively, fluoroscopic imaging provides intraoperative 2D visualization of the hip anatomy, but it presents its own set of challenges. First and foremost, the mental interpretation of 2D X-ray images places an undesirable burden on the surgeon, at a time when her chief concern should be correctly aligning the hip. Computer-assisted tracking systems overcome the requirement for mental 2D/3D registration of the image with the anatomy. Based on the fluoroscopic image of the hip, they can automatically track desired objects and display their poses in the context of a preoperative plan.
The systems we investigate here involve the registration of intraoperative 2D fluoroscopic images with a 3D preoperative model. Improper initialization of traditional registration algorithms, such as Iterative Closest Point (ICP) and its many variants, can lead to large registration errors. This is because of the numerous local minima which may exist in the cost optimization's function. A better “first guess” makes it much more likely that ICP converges on the actual minimum, a reliable registration. This first guess typically takes the form of human input, identifying anatomical landmarks in the hip anatomy. Yet human input is undesirable for two reasons. First and foremost, the time required for human landmark annotation is not insignificant. Even a 4-5 second delay interrupts the surgical procedure, resulting a disjointed alignment process. Sub-second registration, on the other hand, would allow more continuous adjustment of the cup and stem.
Prior work has shown that deep learning (DL) based techniques can identify anatomical landmarks in a fast and reliable manner, in order to initialize an ICP algorithm. Unlike ICP algorithms, deep neural networks (DNNs) learn generalizable features from labeled training data, and use them to interpret previously unseen images. For example, use simulated images to generate arbitrarily large training data with perfectly known ground truth anatomical landmarks. They show that a multi-stage DNN trained on these simulated images can generalize well to real-world images but are susceptible to scenarios not seen during training. A surgical tool which occludes the image can severely compromise the DNN's ability to detect anatomical landmarks. Since the goal of automatic landmark detection is continuous, intraoperative feedback for the surgeon, it would be impractical for the surgeon to withdraw her tools during every registration. Thus, we aim to improve the generalization of DNNs from simulation to real-world scenarios which are not encountered during training.
There are many possible approaches for improving sim-to-real generalization. We propose using a novel patch-normalized convolution (PNC) layer, which constrains feature descriptors to a local region at every scale, described in the Technical Approach of the project plan. Based on preliminary results, PNC shows an improved ability to generalize to unseen types of noise, especially additive noise patterns and contrast adjustments. We anticipate that DNNs which employ PNC will be particularly effective for occlusions by surgical tools due to the high contrast between these tools and typical intensities for an unoccluded X-ray.
Deliverables:
---------- ---------------- --------------------------------------------------------------------------------------------------
Algorithm DNN for landmark detection.
Implementation PyTorch Implementation, Made Public on [GitHub](https://github.com)
Minimum Validation Anatomical landmark detection results on real data, matching prior work.
Documentation Inline code documentation.
Presentation Final written report, in-class presentation.
---------- ---------------- --------------------------------------------------------------------------------------------------
Algorithm DNN for landmark detection **using PNC**.
Implementation PyTorch implementation, made public on [GitHub](https://github.com), **ready for academic use**.
Expected Validation Anatomical landmark detection results on real data, **exceeding prior work**.
Documentation **Organized and complete code** documentation.
Presentation Final written report, in-class presentation.
---------- ---------------- --------------------------------------------------------------------------------------------------
Algorithm DNN for landmark detection **using PNC**.
Implementation PyTorch implementation, made public on [GitHub](https://github.com), ready for academic use.
Maximum Validation Anatomical landmark detection results on real data **with demonstrable generalization**.
Documentation Organized, complete code documentation, final report, **academic publication**.
Presentation Final written report, in-class presentation, **academic publication**.
---------- ---------------- --------------------------------------------------------------------------------------------------

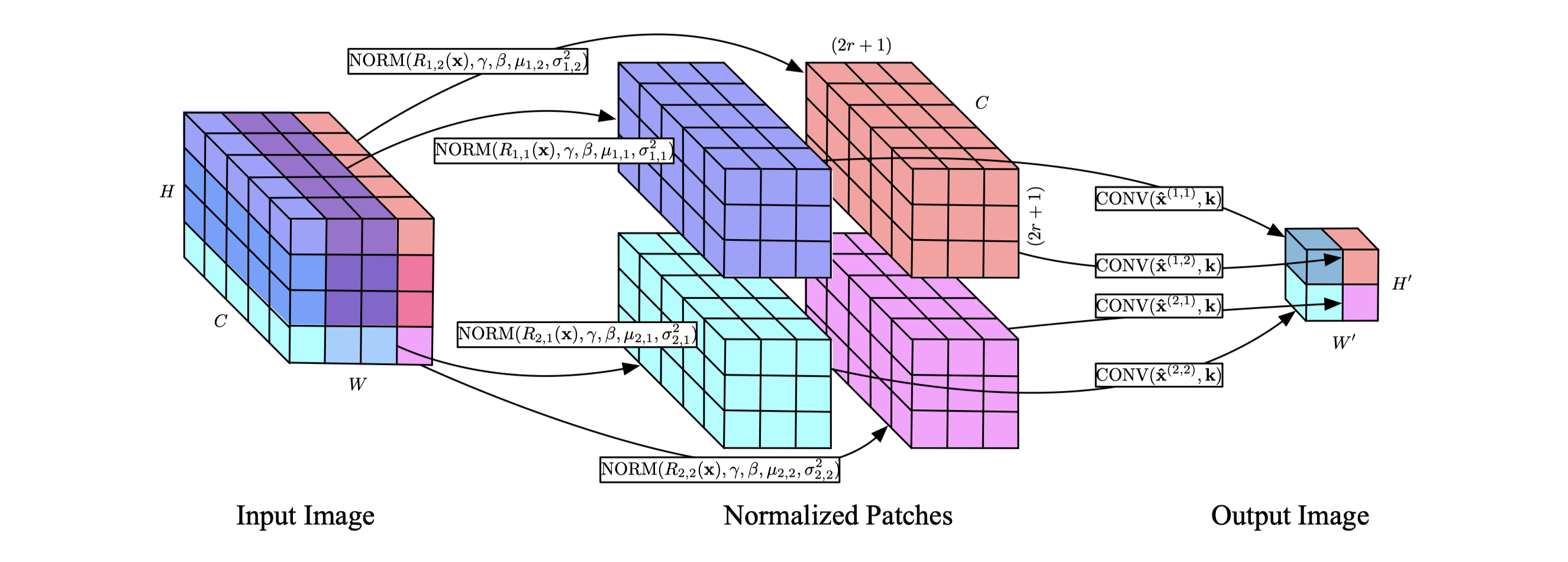

Much of the recent success in computer vision is due to the advent of the deep convolutional neural network, which has at its core the convolutional layer. We propose to apply DNN architectures based on prior work to anatomical landmark detection, incorporating a novel type of convolutional layer, the Patch-normalized Convolution (PNC). We hypothesis that the spatially local nature of the PNC layer as well as its robustness to noise will enable greater generalization to real X-ray data. We refer to and for a discussion of the U-Net and stage-based DNN architectures, respectively, which we will employ for landmark detection.
State-of-the-art DNNs, including the afforementioned U-Net and stage-based network, usually pair a convolutional layer with a normalization layer. In our project proposal, we review these concepts briefly in order to lay the groundwork for PNC, which combines a convolution with a kernel-dependent normalization. Please see project_proposal.pdf for a detailed mathematical formulation.
Our primary dependencies are simulated and real fluoroscopic images of the hip with anatomical landmarks. Simulated X-ray data has been used in an ongoing manner by Cong Gao. Fortunately, these are already resolved. The real X-ray data requires some formatting, for which Robb Grupp is an ongoing contact. Additionally, we are heavily reliant on advanced computational resources for experimentation and ablation studies of any proposed method. The MARCC compute cluster is a reliable high-compute system with multiple redundancies for high-capacity data storage. Alternatively, we have guaranteed access to two personal workstations with high-speed SSD primary drives and high-capacity HDD backup data drives. Any code, documentation, or statistical results are version-controlled and backed up using GitHub.
Recently, based on, we realized it might be of academic interest to evaluate our method's generalization ability to images which are occluded by surgical tools in a previously unseen manner. Although this is not core to our aim of improving sim-to-real generalization, it is nevertheless of interest. Therefore the effort to obtain real images with surgical tool occlusions is ongoing.
Dependency Solution Alternative Status -------------------------------------------------- ------------------------------------------------------------ --------------------------------------------- ----------------------------------------------------- Anatomical Landmark Detection Software `Generalizing_Pelvis_Landmark_Detection` Repository Access Solved DeepDRR Dataset of Simulated Fluoroscopic Images Transfer from Cong Gao NA On Personal Workstation Computational Resources (GPU) MARCC Cluster Access Personal Workstations (3x total GPUs) Allocation Granted Real X-ray Images for Testing [Robb Grupp](mailto:grupp@jhu.edu) NA On BIGSS Shared Drive Real X-ray Images with Occlusions (new) Authors of(mailto:unberath@jhu.edu) IN PROGRESS Efficient PNC PyTorch Implementation [Xingtong Liu](mailto:XingtongLiu@jhu.edu) NA Solved -------------------------------------------------- ------------------------------------------------------------ --------------------------------------------- -----------------------------------------------------
Milestone Date Status ------------------------------------------- ------- -------- Obtain simulated X-ray data from Cong Gao 02/15 Done Obtain Real X-ray data from Robb Grupp 02/11 Done Finalize simulation training pipeline 03/01 Finalize Real X-ray validation pipeline 03/07 Finalize DNN architecture/algorithm 03/21 Finish ablation study 04/14 Finish statistical analysis 04/21 Presentation 05/05 Final report 05/15 Academic publication TBD ------------------------------------------- ------- --------
}
[1] H. Roth et al., “A new 2.5 D representation for lymph node detection in CT,” The Cancer Imaging Archive, 2015.
[2] A. Khan, A. Sohail, U. Zahoora, and A. S. Qureshi, “A Survey of the Recent Architectures of Deep Convolutional Neural Networks,” arXiv:1901.06032 [cs], Feb. 2020.
[3] R. Grupp et al., “Automatic Annotation of Hip Anatomy in Fluoroscopy for Robust and Efficient 2D/3D Registration,” arXiv:1911.07042 [cs, eess], Nov. 2019.
[4] S. Ioffe and C. Szegedy, “Batch Normalization: Accelerating Deep Network Training by Reducing Internal Covariate Shift,” arXiv:1502.03167 [cs], Mar. 2015.
[5] K. He, X. Zhang, S. Ren, and J. Sun, “Deep Residual Learning for Image Recognition,” presented at the Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2016, pp. 770–778.
[6] M. Unberath et al., “Enabling machine learning in X-ray-based procedures via realistic simulation of image formation,” Int J CARS, vol. 14, no. 9, pp. 1517–1528, Sep. 2019, doi: 10.1007/s11548-019-02011-2.
[7] Y. Wu and K. He, “Group Normalization,” presented at the Proceedings of the European Conference on Computer Vision (ECCV), 2018, pp. 3–19.
[8] A. Krizhevsky, I. Sutskever, and G. E. Hinton, “ImageNet Classification with Deep Convolutional Neural Networks,” in Advances in Neural Information Processing Systems 25, F. Pereira, C. J. C. Burges, L. Bottou, and K. Q. Weinberger, Eds. Curran Associates, Inc., 2012, pp. 1097–1105.
[9] D. Ulyanov, A. Vedaldi, and V. Lempitsky, “Instance Normalization: The Missing Ingredient for Fast Stylization,” arXiv:1607.08022 [cs], Nov. 2017.
[10] J. L. Ba, J. R. Kiros, and G. E. Hinton, “Layer Normalization,” arXiv:1607.06450 [cs, stat], Jul. 2016.
[11] B. Bier et al., “Learning to detect anatomical landmarks of the pelvis in X-rays from arbitrary views,” Int J CARS, vol. 14, no. 9, pp. 1463–1473, Sep. 2019, doi: 10.1007/s11548-019-01975-5.
[12] A. Malik and L. D. Dorr, “The Science of Minimally Invasive Total Hip Arthroplasty,” Clinical Orthopaedics and Related Research®, vol. 463, pp. 74–84, Oct. 2007, doi: 10.1097/BLO.0b013e3181468766.
[13] O. Ronneberger, P. Fischer, and T. Brox, “U-Net: Convolutional Networks for Biomedical Image Segmentation,” in Medical Image Computing and Computer-Assisted Intervention – MICCAI 2015, Cham, 2015, pp. 234–241, doi: 10.1007/978-3-319-24574-4_28.
[14] M. Woerner et al., “Visual intraoperative estimation of cup and stem position is not reliable in minimally invasive hip arthroplasty,” Acta Orthopaedica, vol. 87, no. 3, pp. 225–230, May 2016, doi: 10.3109/17453674.2015.1137182.
[15] B. Bier et al., “X-ray-transform Invariant Anatomical Landmark Detection for Pelvic Trauma Surgery,” arXiv:1803.08608 [cs], Mar. 2018.
Here give list of other project files (e.g., source code) associated with the project. If these are online give a link to an appropriate external repository or to uploaded media files under this name space (2020-03).
